نام:	304 316 مشبک سیم فلزی ضد زنگ مش کابل کابل برای راه پله	طناب سیمی:	1.2 میلی متر تا 4.0 میلی متر
ساخت و سازهای طناب:	7 x 7 ، 7 x 19 ، 1 x 19	مادی:	فولاد ضد زنگ 304 ، 316 ، 316L
جهت یابی:	افقی ، عمودی	شکل مش:	رومبوس ، الماس
تمام شده:	حمام اولتراسونیک / اکسید سیاه	کاربرد:	امنیت راه پله، پر کردن نرده، ایمنی نرده
اندازه تابلو:	سفارشی به عرض و طول	زاویه مش:	60 درجه
سبک مش:	x-tend در نوع فرو رفته
برجسته کردن:	stainless steel wire rope fence,316 stainless steel cable mesh,staircase balustrade wire mesh , 316 stainless steel cable mesh , staircase balustrade wire mesh

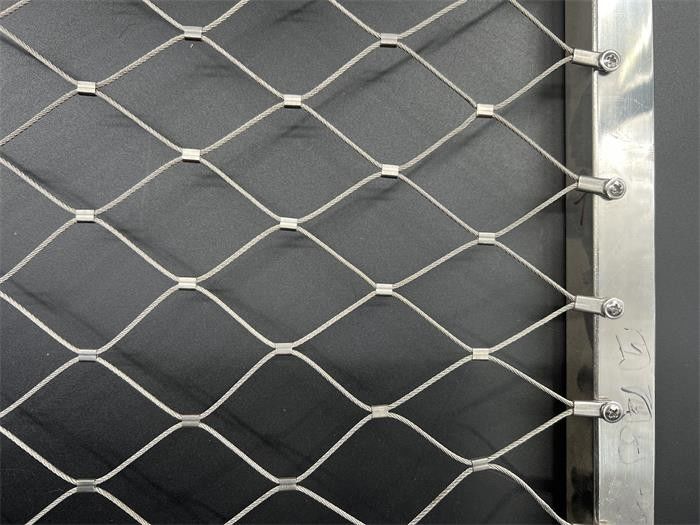

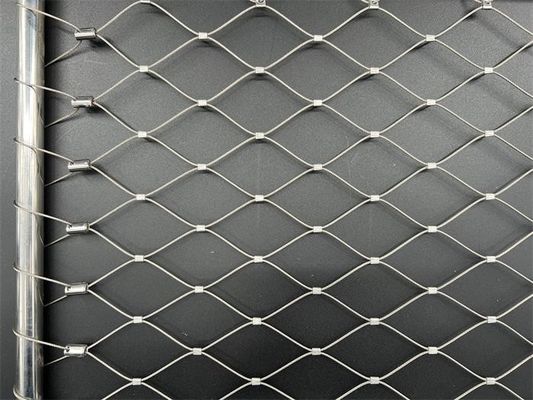

304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase

Product Specifications

Material: Stainless Steel 304, 316, 316L

Wire Rope: 1.2 mm to 4.0 mm

Rope Constructions: 7 x 7, 7 x 19, 1 x 19

Finished: Ultrasonic Bath / Black Oxide

Mesh Orientation: Horizontal, Vertical

Product Name: Inox X-tend Cable Mesh Webnet

Mesh Shape: Rhombus, Diamond

Application: Staircase Security, Balustrade Infill, Railing Safety

Panel Size: Customized in width and length

Mesh Angle: 60 degree

Mesh Style: X-tend in Ferruled Type

Hand-Woven Security Fence Steel Rope Fence

High-quality stainless steel cable mesh designed for bridge railings and balustrade applications.

Wire Rope Mesh Specifications

Hole Size (Opening)	1.2MM(3/64) (7 x 7)	1.6MM(1/16) (7 x 7)	2.0MM(5/64) (7 x 7)	2.4MM(3/32) (7 x 7)	3.2MM(1/8) (7 x 19)
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

Material Composition

Grade	Chemical Composition (%)
SS304	C:≤0.07, Si:≤1.0, Mn:≤2.0, Cr:17.0-19.0, Ni:8.0-11.0, S:≤0.03, P:≤0.035
SS316	C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Recommended Balustrade Infill Wire Mesh

Material	Cable Diameter	Hole Size	Normal Break
SS304/316/316L	1/16" (1.6MM)	2.5" x 2.5"	480 LBS
SS304/316/316L	1/16" (1.6MM)	2" x 2"	480 LBS
SS304/316/316L	5/64" (2.0MM)	2.5" x 2.5"	676 LBS
SS304/316/316L	5/64" (2.0MM)	2" x 2"	676 LBS
SS304/316/316L	5/64" (2.0MM)	3" x 3"	676 LBS

Our Balustrade Infill Wire Rope Mesh is manufactured from high-grade stainless steel cables (material class 1.4401, AISI316/AISI316L). The X-tend type cable mesh is custom manufactured to suit your balustrade, railing or architectural application. The mesh can be applied in either vertical or horizontal orientation, depending on the balustrade or railing design. Diagonal and irregular shapes can also be supplied.

Wire Rope Mesh by Yuntong is made from stainless steel wires with skin-like characteristics. It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical shapes.

X-TEND Stainless steel mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules create a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates exceptionally robust characteristics - the mesh can even stand up to heavy loads.

برچسب:

محل منبع:	هبی
نام تجاری:	Yuntong
گواهی:	CE , SGS
شماره مدل:	yt-ff

مقدار حداقل تعداد سفارش:	10 متر مربع
جزئیات بسته بندی:	فیلم بسته بندی برای هر قطعه ، چندین قطعه بسته بندی شده در 1 کارتن
زمان تحویل:	5-8 روز کاری
شرایط پرداخت:	T/T ، Western Union ، PayPal
قابلیت ارائه:	300 متر مربع در هفته
