| محل منبع: | هبی، چین |
|---|---|
| نام تجاری: | Yuntong |
| گواهی: | CE , SGS |
| شماره مدل: | YT- F188 |
| مقدار حداقل تعداد سفارش: | 10 متر مربع |
| جزئیات بسته بندی: | فیلم بسته بندی برای هر قطعه ، چندین قطعه بسته بندی شده در 1 کارتن |
| زمان تحویل: | 5-8 روز کاری |
| شرایط پرداخت: | T/T، وسترن یونیون، پی پال |
| قابلیت ارائه: | 300 متر مربع در هفته |
| قطر کابل: | از 1.2 میلی متر تا 3.2 میلی متر یا بزرگتر | ساخت و سازها: | 1x7، 7 x 7، 7 x 19 |
|---|---|---|---|
| کیفیت: | بهترین | جهت یابی: | افقی ، عمودی |
| نام محصول: | شبكه طناب فولاد ضد زنگ X-Tend | مزیت: | مش طناب X-tend |
| برنامه: | محوطه حیوانات | سبک بافتن: | بافت ساده |
| برجسته کردن: | 316 stainless steel garden fence net,cable mesh football field protection,stainless steel rope net with warranty,cable mesh football field protection,stainless steel rope net with warranty |
||
316 Stainless Steel Rope Net for Garden Fence Fall Protection Football Field Cable Mesh

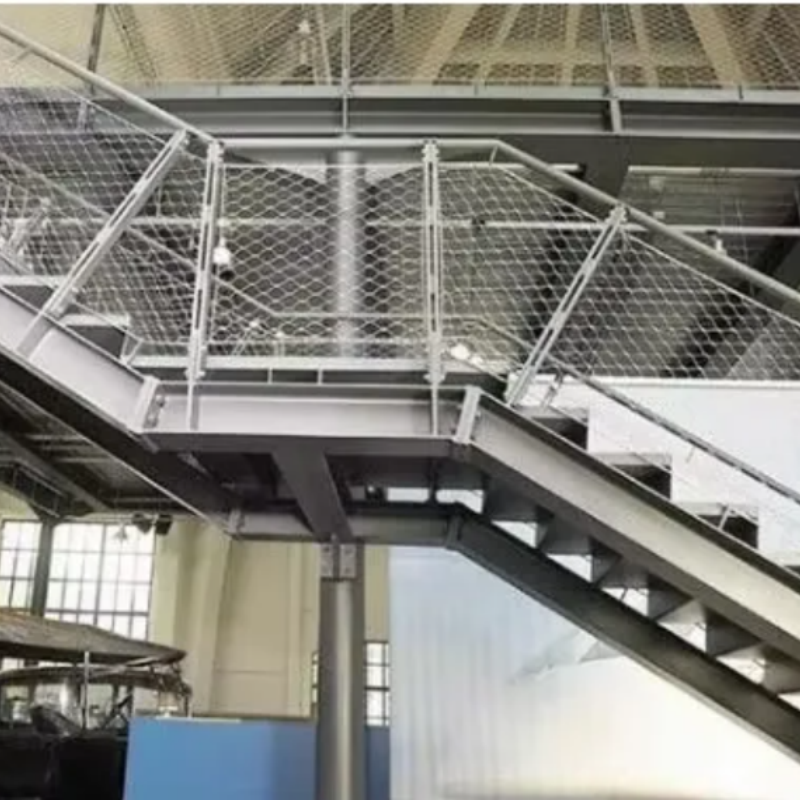

316 Stainless Steel Rope Net are the great projects of humans. And a suspension bridge is made up of three components: deck (the load-bearing portion), railing and suspension cables. The railings of many suspension bridges are made of stainless steel rope mesh, namely stainless steel suspension bridge railing mesh. Why stainless steel rope mesh can play so important role? Because it has many incomparable features: light weight and soft.
Stainless steel suspension bridge rope mesh is light, making the hands if you touch it.
Stainless Steel Rope Net Specifications :
|
Mesh Eye Size (Opening) |
1.2mm(3/64) (7 x 7 ) |
1.6mm(1/16) (7 x 7 ) |
2.0mm(5/64) (7 x 7 ) |
2.4mm(3/32) (7 x 7 ) |
3.2mm(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Customized:
Frame Systems
Stainless steel wire rod, round tube, square tube and other shape tube.
Rectangular panel, trapezoid panel, round shape panel and other special shape paneld netting
Colored Finished
Black oxide.
Colourful ferrules assembled with standard stainless steel wire rope.
Colourful stainless steel wire rope assembled with standard ferrules.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0 |
![]()
