Name: Aviary Zoo Mesh Stainless Steel Hand-Woven Ferruled Cable Wire Rope Mesh
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: yt-ff
Price: 17.00 USD
Availability: InStock

Aviary Zoo Mesh Stainless Steel Hand-Woven Ferruled Cable Wire Rope Mesh

اطلاعات پایه

محل منبع:	هبی
نام تجاری:	Yuntong
گواهی:	CE , SGS
شماره مدل:	yt-ff

مقدار حداقل تعداد سفارش:	10 متر مربع
جزئیات بسته بندی:	فیلم بسته بندی برای هر قطعه ، چندین قطعه بسته بندی شده در 1 کارتن
زمان تحویل:	5-8 روز کاری
شرایط پرداخت:	T/T ، Western Union ، PayPal
قابلیت ارائه:	300 متر مربع در هفته

اکنون تماس بگیرید

نام محصول:

فولاد ضد زنگ دستبند سیم کابل بافته شده

طناب سیمی:

1.2 میلی متر تا 4.0 میلی متر

ساخت و سازهای طناب:

7 x 7 ، 7 x 19 ، 1 x 19

تمام شده:

حمام اولتراسونیک / اکسید سیاه

جهت یابی:

افقی ، عمودی

مادی:

فولاد ضد زنگ 304 ، 316 ، 316L

شکل مش:

رومبوس ، الماس

کاربرد:

محوطه حیوانات، محوطه میمون، محوطه ببر و غیره

برجسته کردن:

stainless steel zoo wire mesh,hand-woven ferruled cable mesh,aviary stainless steel rope mesh

hand-woven ferruled cable mesh

aviary stainless steel rope mesh

Stainless Steel Hand-Woven Ferruled Cable Wire Rope Mesh

The Zoo Wire Mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.
Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.
Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.
Finished diamond mesh style when it is stretched at 60 degree angle ;

Zoo Wire Mesh Specifications Sheet :

Hole Size (Opening)	1.2MM(3/64) (7 x 7 )	1.6MM(1/16) (7 x 7 )	2.0MM(5/64) (7 x 7 )	2.4MM(3/32) (7 x 7 )	3.2MM(1/8) (7 x 19 )
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

1. Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Recommended Monkey Enclosure Zoo Wire Mesh:

Material	Cable Diameter	Hole Size	Normal Break
SS304/316/316L	3/32" (2.4MM)	2.5" x 2.5"	920 LBS
SS304/316/316L	3/32" (2.4MM)	2" x 2"	920 LBS
SS304/316/316L	5/64" (2.0MM)	2.5" x 2.5"	676 LBS
SS304/316/316L	5/64" (2.0MM)	2" x 2"	676 LBS
SS304/316/316L	1/8" (3.2MM)	2" x 2"	1600 LBS
SS304/316/316L	1/8" (3.2MM)	3" x 3"	1600 LBS

Stainless steel zoo wire is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of the mesh can even stand up to heavy loads.

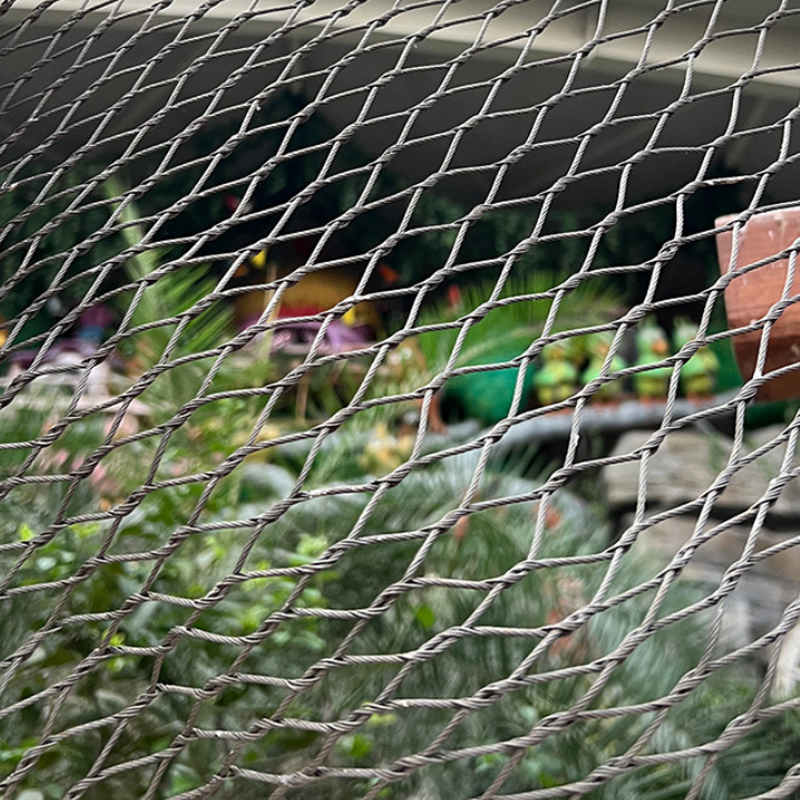

Aviary Zoo Mesh Stainless Steel Hand-Woven Ferruled Cable Wire Rope Mesh 0
