| محل منبع: | هبی |
|---|---|
| نام تجاری: | Yuntong |
| گواهی: | CE , SGS |
| شماره مدل: | yt-ff |
| مقدار حداقل تعداد سفارش: | 10 متر مربع |
| جزئیات بسته بندی: | فیلم بسته بندی برای هر قطعه ، چندین قطعه بسته بندی شده در 1 کارتن |
| زمان تحویل: | 5-8 روز کاری |
| شرایط پرداخت: | T/T ، Western Union ، PayPal |
| قابلیت ارائه: | 300 متر مربع در هفته |
| نوع مش: | فرول یا گره خورده | ساخت و سازهای طناب: | 7 x 7 ، 7 x 19 ، 1 x 19 |
|---|---|---|---|
| تمام شده: | حمام اولتراسونیک ، اکسید سیاه | طناب سیمی: | 1.2 میلی متر تا 4.0 میلی متر |
| جهت یابی: | افقی ، عمودی | مادی: | فولاد ضد زنگ 304 ، 316 ، 316L |
| نام محصول: | حیوانات باغ وحش قفس مشبک مشبک انعطاف پذیر استیل ضدزنگ شبکه مش مشبک مشبک | زاویه مش: | 60 درجه، 90 درجه |
| کاربرد: | محوطه حیوانات، محوطه میمون، محوطه ببر و غیره | ||
| برجسته کردن: | stainless steel zoo wire mesh,flexible aviary mesh net,zoo animals cage wire rope,flexible aviary mesh net,zoo animals cage wire rope |
||

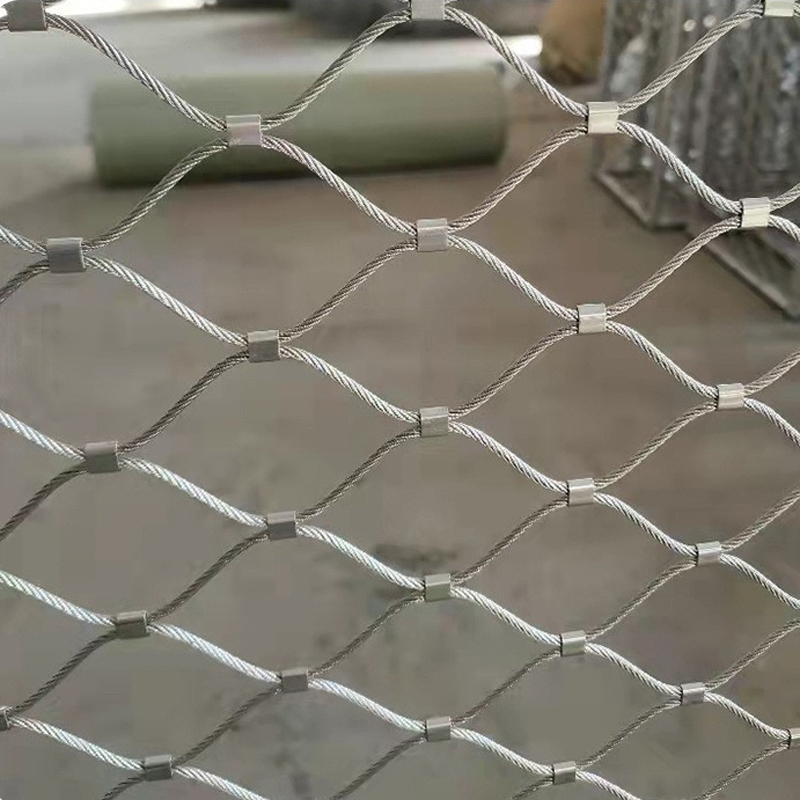

Zoo Animals Cage Aviary Mesh Flexible Stainless Steel Wire Rope Mesh Net
Zoo Wire Mesh Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
1. Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0 |
2. Hand woven mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
3. Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
Recommended Monkey Enclosure Zoo Wire Mesh:
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 3/32" (2.4MM) | 2.5" x 2.5" | 920 LBS |
| SS304/316/316L | 3/32" (2.4MM) | 2" x 2" | 920 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 1.5" x 1.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2" x 2" | 676 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1.5" x 1.5" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 1.2" x 1.2" | 480 LBS |

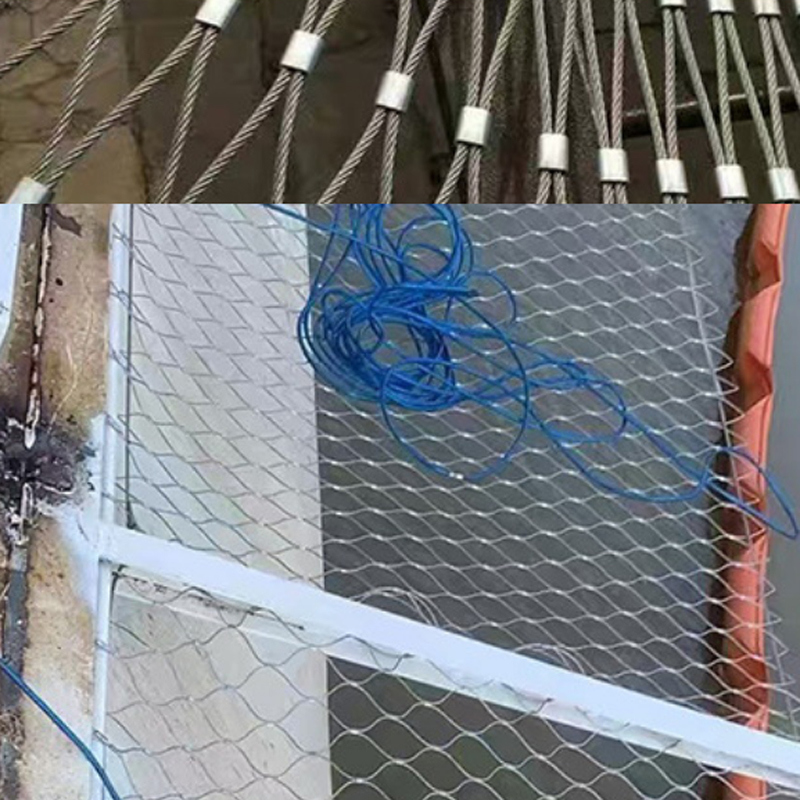

Stainless steel zoo wire mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of the mesh can even stand up to heavy loads.
![]()
![]()
![]()
